Rotate and flip elements

You can insert some think-cell elements in rotated positions or rotate or flip them after insertion.

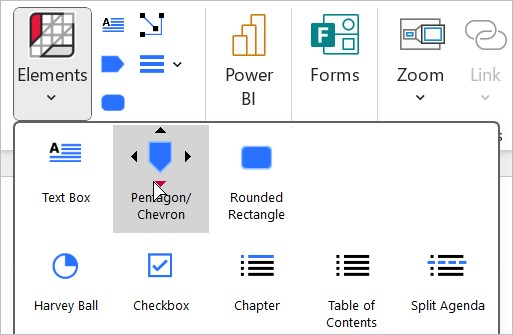

On the Elements menu, some element icons have small arrows on each side (see Insert elements). If you hover over the arrows, think-cell shows the element in rotated orientations. To insert an element in a rotated orientation, select the arrow that shows the orientation that you want.

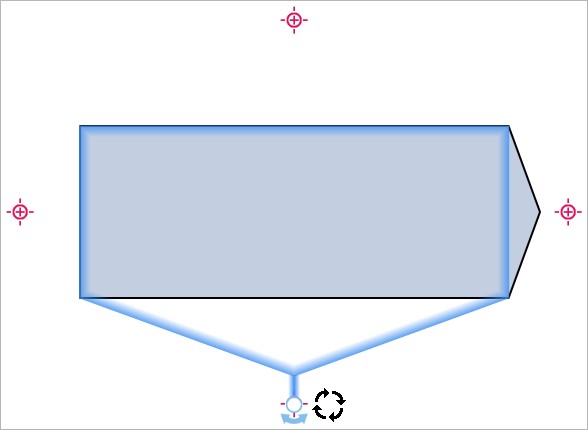

To rotate an element after inserting it on a slide, select the element and drag the blue rotation handle. Red targets appear on each side of the element that show possible orientations. Drag the rotation handle to the orientation that you want.

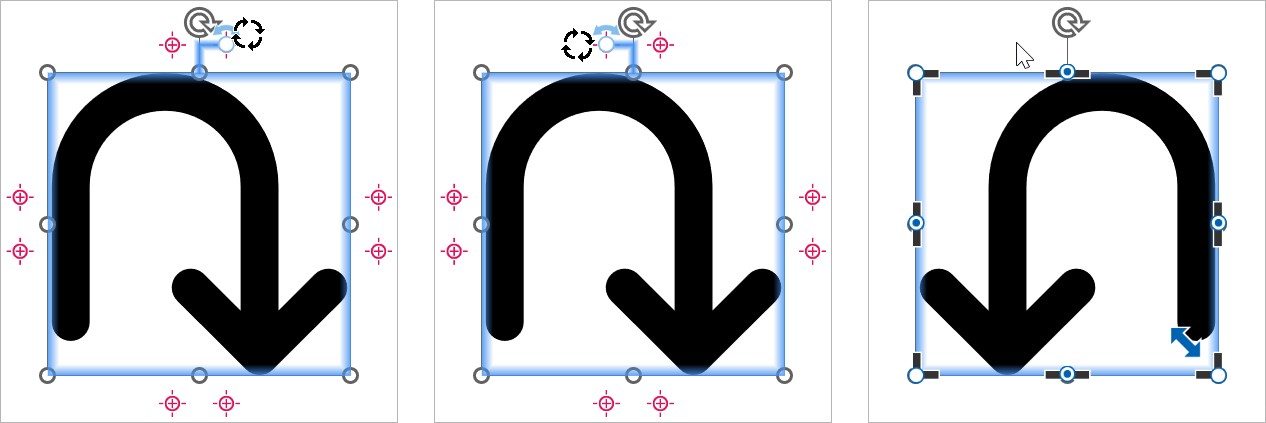

You can flip think-cell tables, images, and icons after inserting them on a slide. When you select these elements and drag the rotation handle, two red targets appear on each side of the element that show possible orientations. To flip an element horizontally, drag the blue rotation handle to the red target that appears immediately next to the handle. To flip an element vertically, drag the blue rotation handle to the red target that appears directly opposite the handle on the other side of the element.
