KB0196: Error when opening PowerPoint or Excel, or editing a think-cell chart: "CFindCodePattern failed"

  1. Home
  2. Resources
  3. Knowledge base
  4. KB0196

Problem

When you open PowerPoint or Excel, or when you insert or edit a think-cell chart, an error message appears that mentions "CFindCodePattern failed" or "CModuleFindChunk failed." This error typically appears after an update for Microsoft Office has been installed.

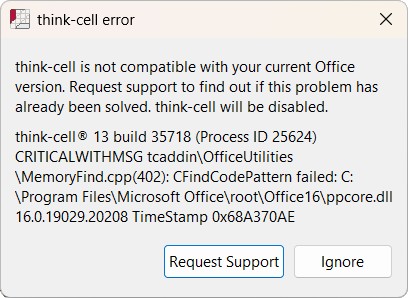

think-cell error message "think-cell is not compatible with your current Office version. Request Support to find out if this problem has already been solved. think-cell will be disabled."

Solution

Download and install the latest think-cell version from our download page.

If you've joined the Microsoft 365 Insider beta program, you might have installed an Office update with which think-cell is not yet compatible. In this case, you can opt out of the Insider program.

Contact support

If you're still experiencing this issue after updating to the latest think-cell version, please contact our support team.

Please send us the think-cell log files. To do so, on the PowerPoint or Excel ribbon, select Insert > think-cell > Tools Tools Menu icon > Request Support. A new email will open with the log files automatically attached.

If Request Support works neither in PowerPoint nor in Excel, do the following: Read more

  1. Open a new File Explorer window.

  2. In the address field, enter %LOCALAPPDATA%\think-cell. Select Enter.

    Alternatively, you can open the think-cell folder by browsing the directory: Read more

    The full default filepath is C:\Users\USERNAME\AppData\Local\think-cell. Replace USERNAME with your username.

    If you can't find this folder, it's probably hidden. To show hidden items, in File Explorer, select one of the following:

    • Windows 7: Organize > Folder and search options > View > Show hidden files and folders
    • Windows 8, Windows 8.1, and Windows 10: View > Show/hide > Hidden Items
    • Windows 11: View > Show > Hidden Items

  3. Send all the files in the think-cell folder that end in log to our support team. These files may include any of the following:

    • EXCEL_log.log
    • POWERPNT_log.log
    • ppttc_log.log
    • setup_think-cell_VERSION_log.log
    • tcasr_log.log
    • tcindex_log.log
    • tcmail_log.log
    • tcrunxl_log.log
    • tcupdate_log.log

      • Additionally, if think-cell is active, please send us a screenshot of the About think-cell dialog. To open the About think-cell dialog, on the PowerPoint or Excel ribbon, select Insert > think-cell > Tools Tools Menu icon > About.

Technical background

Microsoft frequently releases updates for Microsoft 365 that older versions of think-cell may not be compatible with. To learn more, see KB0165: Does think-cell work with Microsoft 365 (Office 365) and Office 2016/2019 Click-to-Run?.
